GIK음향 알파 시리즈 멋지게 확산에 흡수를 접목시킨 음향 패널과 베이스 트렙의 형태가 변화하고 있다. 그 알파 시리즈로 소비자들이 모두가 미적으로, 음향학적으로 뛰어난 품질, 높은 평가를 받은, 멋있게 음향 패널과 베이스 트렙이 설치된 모델로 당신의 오디오 룸을 향상시킬 수 있습니다.
FEATURES:Highly attractive, modern, decorative plate available in beech wood veneer, black rigid vinyl, or white rigid vinyl
- Standard dime
nsions: 595mm x 595mm | 595mm x 1205mm
- 4A Alpha Panel depth: 100mm sturdy wood frame with rigid rockwool core
- 595mm x 595mm Standard weight: 4.8 kgs
- 595mm x 1205mm Standard weight: 9 kgs
- NRC = 1.05 (versus foam products where NRC = 0.4)
- Thin face plate has mathematical sequence of slots for spatial diffusion, but also allow low frequency waves to pass through to the rockwool panel for low end absorption
- Rigid rockwool core provides twice the low end absorption over similar foam-based products
- Easy to wall mount with sawtooth hanger (included). No glue or destructive adhesive when mounting
- available in 9 standard Camira Cara fabric options
- additional Camira Cara or Camira Lucia fabric choices available

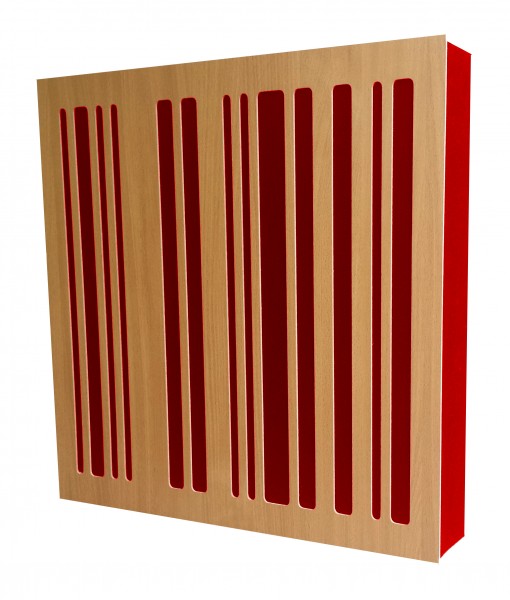

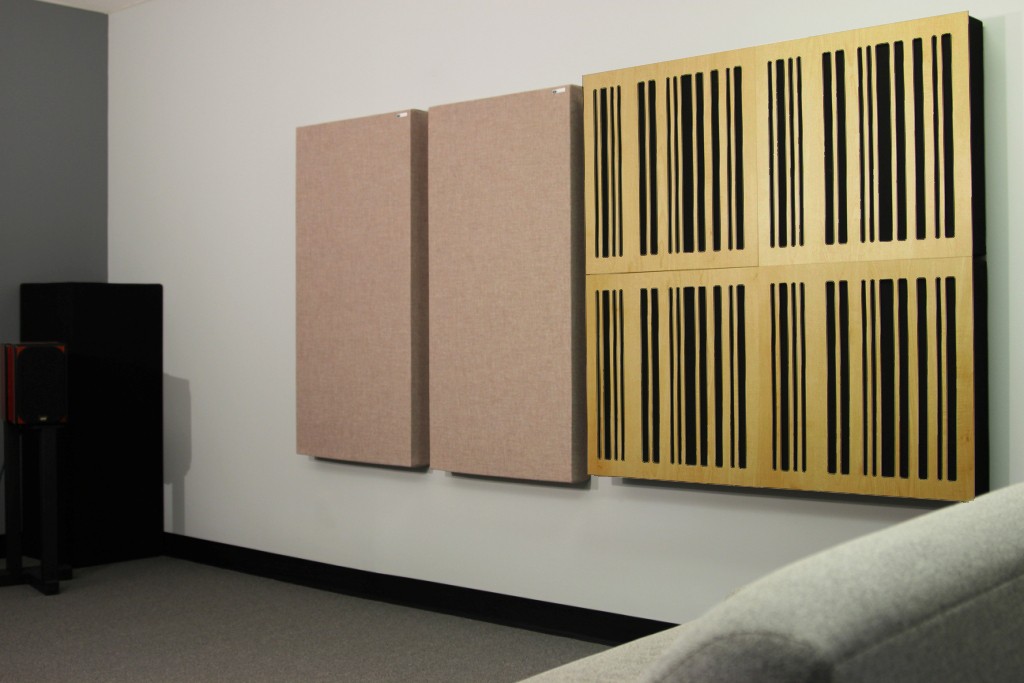

The 4A Alpha Panel is an attractive choice for a room where mid and high frequency chaos needs to be controlled but not removed. In a control room, the 4A Alpha Panel can be used on the front or back walls and rear sidewalls to keep the reverberation better mixed and the room lively. In home theater and two-channel audio rooms, the 4A Alpha Panel can be utilized on the rear sidewalls or behind dipole speakers to round off sharp reflections. The 4A Alpha Panel is also right at home anywhere in a tracking room or other large spaces, helping spread out the energy evenly across the whole room.
The 4A Alpha Panel is constructed as a 100mm wood-framed panel filled with rigid rockwool absorption material (core made from 100% recycled materials, environmentally friendly without any formaldehyde or urea formaldehyde), wrapped in your choice of fabric, and finished with a thin plate which has a mathematical sequence of slots for one-dimensional scattering/diffusion.
Scattering high frequencies with the use of slats in a mathematical sequence allows you to achieve an even decay time from low to high frequencies, while providing the necessary absorption to flatten the frequency response.
For more information on using diffusion, read our article “Diffusion is a Wonderful Tool” by Jeff Hedbeck.
 | ||||||||||
|
